Crimped wire mesh is constructed of wires that have been crimped prior to weaving them together in a loom.
Descriptions:
Crimped wire mesh is constructed of wires that have been crimped prior to weaving them together in a loom. Crimping the wires before weaving provides stability and consistency in larger spaced wire mesh. Various crimping styles have been developed over the years to improve manufacturing efficiencies, function, and aesthetics. The most common materials used to create Cripmed wire mesh are 65Mn steel wire, galvanized steel, stainless steel, aluminum, Brass and Copper, etc.
Features:
Solid construction
Extremely versatile
Easy to install
Can have low resistance to wind loads
Easy cut to fit
Available in many materials, such as stainless steel and aluminum
Applications:
Fencing, Baskets, Grills, Grates, Display shelves and stands, Racks, Liquid filtration, Air filtration, Wall reinforcement.

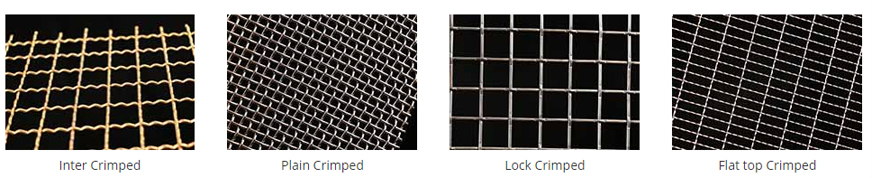

Weave Type:
Parameters:
| Wire Gauge(SWG) | Wire Diameter(mm) | Mesh/Inch | Aperture(mm) | Weight(kg/m²) |
| 6 | 4.8 | 0.7 | 3 | 14 |
| 6 | 4.8 | 1 | 2 | 20 |
| 6 | 4.8 | 1.2 | 2 | 20 |
| 8 | 4.05 | 18 | 1 | 15 |
| 14 | 2 | 5.08 | 0.3 | 12 |
| 14 | 2 | 2.1 | 1 | 2.5 |
| 14 | 2 | 3.6 | 1.5 | 1.9 |
| 14 | 2 | 2.1 | 1 | 4.2 |
| 19 | 1 | 2.3 | 0.18 | 1.45 |
| 22 | 0.71 | 12 | 0.14 | 2.94 |
| 23 | 0.61 | 18 | 0.8 | 3.4 |
| 24 | 0.55 | 16 | 0.1 | 2.5 |
| 24 | 0.55 | 14 | 0.12 | 4 |
| 25 | 0.5 | 20 | 0.61 | 2.6 |
